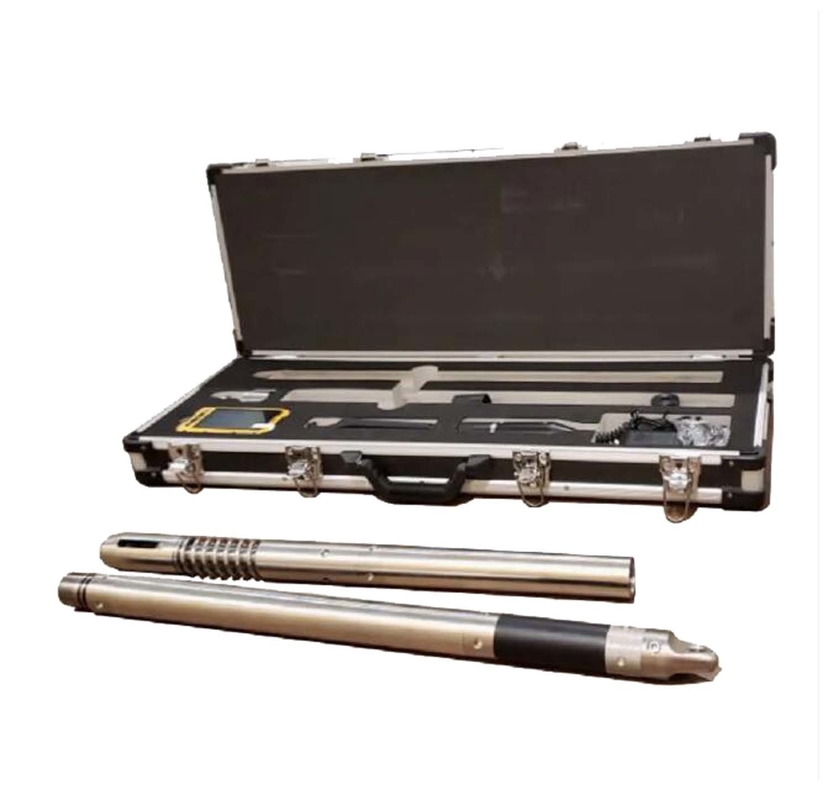

Wireless Digital Compass Inclinometer Downhole Deviation Tester Downhole Survey Tools
| Basic Info of Downhole Survey Tools | |
| Model NO. | RS-2000 |
| Brand | ROSCHEN |
| Condition | New |
| Dimension | 40mm*1200mm |
| Cotrollor | 2600mA |
| Measuring Time | 0.5s |
| Power | Li-ion Battery, 7.4V Rechargeable |
| Weight | 6kg |
| Water/Dustproof | IP65 |
| Endurance | About 20 Hours |
| Working Temperatrue | -10°c - 70°c |
| Max Pressure | 20MPa |
| Storage | 8GB ROM |
| Measuring Depth | 2000m |
| Accuracy | 2mm |
| Vertical Lines | 1 |
| Horizontal Line | 2 |
| After-sales Service | Online Guidance |
| Warranty | 1 Year |
| Transport Package | Natural Package |
| Specification | CE |
| Trademark | ROSCHEN |
| Origin | China |
| HS Code | 9015800090 |
| Production Capacity | 1000 Sets/Month |
The geotechnical inclinometer is designed and made for inclination measurement and direction control during engineering drilling, exploration drilling and directional drilling. Combines sensor, power supply, data processing system, and other controlling unit together, it can independently determine dip angle and azimuth angle of borehole at multi-points. No cable is needed. No mechanical moving parts. It is reliable and with high performance price ratio.
Technical parameters:
Wireless Digital Compass Inclinometer Downhole Deviation Tester
| 1.Inclination Range | 0° - 80°(Resolution 0.01°) | Accuracy | ±0.1° (0° - 50°) |
| ±0.8° (50° - 80°) | |||
| 2.Azimuth Range | 0° - 360°(Resolution 0.1°) | Accuracy | ±3°(@Inclination>4°) |
| 3.Pressure | 20MPa | ||
| 4.Dimensions | Ø40mm×1200mm | Weight | about 6Kg |
| 5.Temperature | -10°C - 70°C | ||
| 6.Power (Probe) | 7.4V Rechargeable Battery | Endurance | About 20 hours |
| 7.Power (Controller) | 2600 mAh Polymer Battery | ||
| 8.Depth | 2000m | ||
| 9.Storage | 8GB ROM | ||
Main application:
Wireless Digital Compass Inclinometer Downhole Deviation Tester
Measuring the inclination and azimuth of the non-magnetic boreholes for geological survey and geological project.
Structure:
