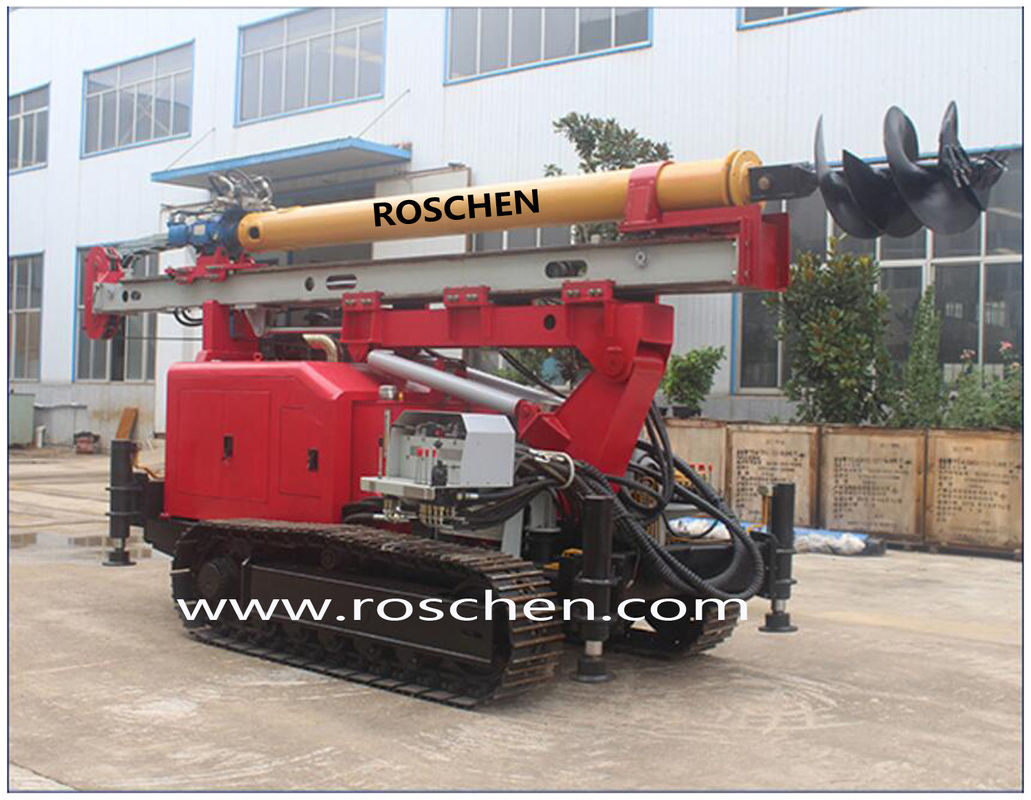

RS-160 Multifunction Hydraulic Crawler Drilling Rigs for Jet Grouting
RS-160 Multifunction Hydraulic Crawler Drilling Rig
Versatile, flexible and high performance machine for micro piles and Kelly Bar applications.
| Quick Details | |
| Condition: | New |
| Type: | Rotary Drilling Rig |
| Power Type: | Diesel Engine, Cummins Diesel Engine, Deutz Diesel Engine |
| Brand Name: | ROSCHEN |
| Model Number: | RS-160 |
| Usage: | Micro piles, segmented flight auger, jet grouting, bored pile |
| Voltage: | 220V/380V |
| Power(W): | 92Kw |
| Dimension(L*W*H): | 6500*2100*3000(mm) |
| Weight: | 9600Kg |
| Certification: | ISO CE |
| Warranty: | 1 Year |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Piling diameter(screw): | 400---1000mm |
| Piling depth(screw): | 14m |
| Bore diameter (DTH hammer): | 115---400mm |
| Bore depth: | 400m |
| Pull-down force: | 2400kg |
| Extraction force: | 9500kg |
| Double clamps minimum diameter: | 100mm |
| Winch line pull (effective): | 2500kg |
| Drum diameter: | 250mm |
| Rope diameter: | 12mm |
Features:
1. Very high extraction force.
2. Large diameter hydraulic joint breaker;
3. Compact equipment easy to transport on trucks.
4. Capacity to drill with telescopic Kelly.
5. Mast extension suitable to place pile cages with auxiliary winch.
6. Suitable to low clearance or tight access jobsites.
7. Capable to handle large diammeter down the hole hammer from 3 inch to 20 inch hole drilling.
Applications:
Micro piles, segmented flight auger, jet grouting, bored pile and down the hole hammer.
Technical parameters:
| Model | RS-160 |
| Piling diameter(screw) | 400---1000mm |
| Piling depth(screw) | 14m |
| Bore diameter (DTH hammer) | 115---400mm |
| Bore depth | 400m |
| Installed power | 92KW |
| Pull-down force | 2400kg |
| Extraction force | 9500kg |
| Double clamps minimum diameter | 100mm |
| Winch line pull (effective) | 2500kg |
| Drum diameter | 250mm |
| Rope diameter | 12mm |
| Crawlers overall length | 2800mm |
| Track shoe width | 380mm |
| Overall width | 2100mm |
| Dimension(L*W*H) | 6500*2100*3000mm |
| Total weight | 9600kg |
