Diamond Core Drilling Rig for engineering geological exploration Core Drilling Highway Railroad

1 Sets
MOQ
Negotiate
giá bán
Diamond Core Drilling Rig for engineering geological exploration Core Drilling Highway Railroad
Đặc trưng Bộ sưu tập Mô tả sản phẩm Yêu cầu báo giá
Đặc trưng
Thông số kỹ thuật
Type: Diamond Core Drilling Rig
Use: Engineering Geological Drilling
Usage: Africa Mining
Drill Rig: Core Drilling Machine
Power: Cummins Diesel engine
Drill rod: BQ Drill Rods
Name: Tunnel Drilling
Series: Wireline Diamond Core Bits
Model: Impregnated Diamond Core Bits
Drilling: Exploration Core Drilling
Drills: Wireline Core Drilling
Mining: Australia Mining
Exploration: Australia Exploration
Model No: Mining Exploration Core Drilling
Applications: Copper Mining Drilling
Điểm nổi bật:

rock drilling equipment

,

borehole drilling machine

Thông tin cơ bản
Nguồn gốc: CHINA
Hàng hiệu: ROSCHEN
Chứng nhận: ISO
Số mô hình: RS-260
Thanh toán
chi tiết đóng gói: Steel Bundle
Khả năng cung cấp: 100 sets
Mô tả sản phẩm

Diamond Core Drilling Rig for engineering geological exploration Core Drilling Highway, Railroad, Tunel

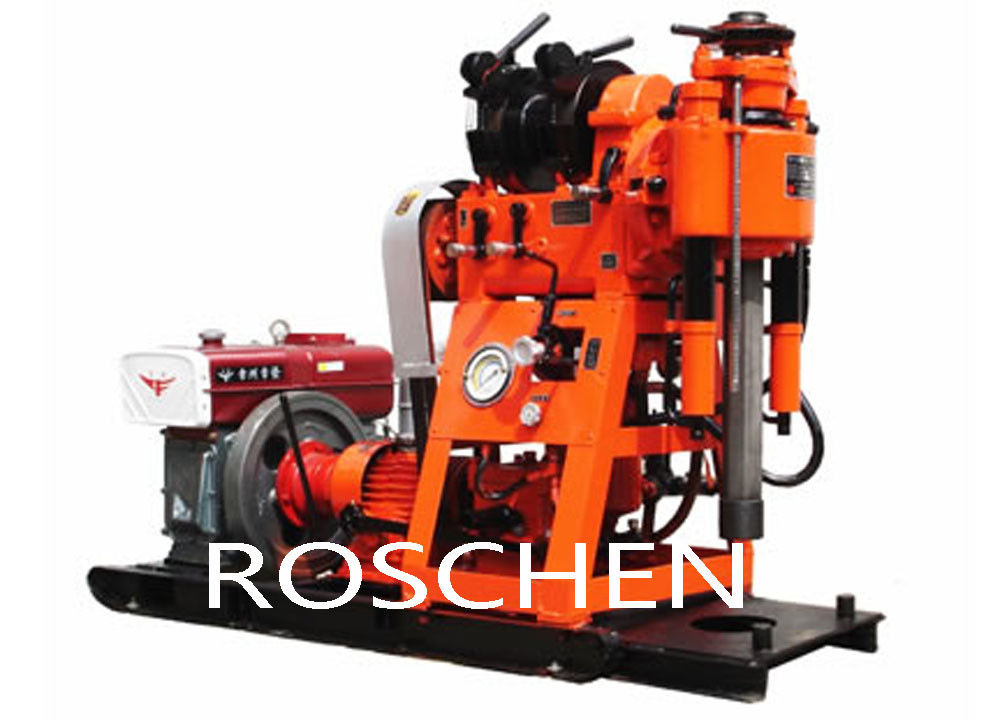

Model: RS-260 Core Drill Rig



Applications:


RS-260 drill rig is a new type of shallow hole core drilling rig with mechanical transmission system and hydraulic pressure feeding system.

It is mainly manufactured for engineering geological exploration, small-scale water well drilling and engineering construction for highway, railroad, hydropower, harbor, etc.

It is also applicable to shallow hole alloy core drilling and diamond core drilling




Features:
1. Diesel engine or electromotor is available to satisfy various engine demands.
2. Higher reliability and intensity as well as stronger capacity compared with similar drill rigs in China.
3. Connecting rod reinforcement spring clamp and hydraulic chuck enjoy novel structure, large clamping force, long service life and reliable performance.
4. Six rotational speeds meet demands of a wide range of applications.
5. Six reverse rotational speeds can realize automatic rod unloading, helping to tackle drilling accidents with lower labor intensity and higher safety.
6. Components of this core drilling rig are almost identical and interchangeable, facilitating replacement and maintenance.
7. Easy to fix the core drill, and stable under high-speed drilling.
8. Light weight and easy to assembly and disassembly. This drill rig can be disassembled into 4 integral parts, allowing convenient transportation and drilling working in mountainous areas and underground tunnels.



Technical Parameters:


Drilling Capability Pipe Dia. Depth (for reference)
Ø42 mm 320 m
Ø50 mm 260 m
Engine Name Diesel engine Electromotor
Model ZS1115M/L24 Y160L-4-B3
Rated Power (kW) 16.2/17 15
Rated Rotational Speed (r/min) 2200 1460
Spindle Rotational Speed (r/min) FWD: 68, 156, 252, 384, 583, 888 REV: 39, 90, 145, 221, 335, 511
Diameter (mm) Ø65 (Ø59 x 53 hexagon)
Max. Torque (N m) 1750
Feed System Type Dual-cylinder feeding
Max. Hoist Force (KN) 60 (rated)
Max. Feed Capacity (KN) 45 (rated)
Feed Distance (mm) 500
Drum Type Planetary type
Single-rope Max. Hoist Capacity (KN) 22
Single-rope Hoist Speed (m/s) 0.606, 2.2, 3.35
Diameter (mm) 160
Rope Dia. (mm) 12
Capacity (m) 30
Hydraulic System Model CBF-F418-ALP
Volume (ml/min) 18
Rated Pressure (MPa) 12
Rated Rotational Speed (r/min) 1500
Oil Cylinder Stroke (mm) 360
Drilling Angle 0 to 360 degree
Dimension (L x W x H) (mm) 1630 x 800 x 1530
Weight (exclude engine) (kgs) 710






FAQ


Q: Are you a manufacturer or trading company?
A: We are a specialized manufacturer.


Q: What are your main products, and used for?
A: Our products include core bit, PDC bit, reaming shell, core barrel, casing, drill rod, SPT equipment, Shelby sampler, drill rig and other drilling parts.
They are used for mineral exploration, geological drilling, geotechnical engineering and soil sampling.


Q: How about the delivery terms?
1. Payment: T/T, L/C, Western Union, Paypal, 30% deposit in advance and rest before delivery.
2. Min. order quantity: 1 piece.
3. Transportation: By DHL/TNT/Fedex express, air, sea, train.


Q: How about discount?
A: Price is based on products and order quantity.


Q: Do you accept sample order?
A: Yes sure, please contact us for details.


Q: How about your after-sales service?
A: As a manufacturer, we offer promt technology support for all problems and questions. Besides, we accept goods return or replace for quality problem.


Q: How does your company control the quality?
A: Quality first. In order to guarantee high quality for our products, Roschen always makes a serious inspection for all products and raw materials in strict procedure. We have obtained certificate of ISO9001:2000 in 2004.
