Drill Rod
>
|
| Place of Origin | Germany |
| Hàng hiệu | ROSCHEN |
| Chứng nhận | ISO, API |
| Model Number | 56, 65, 73, 75, 89, 114 |

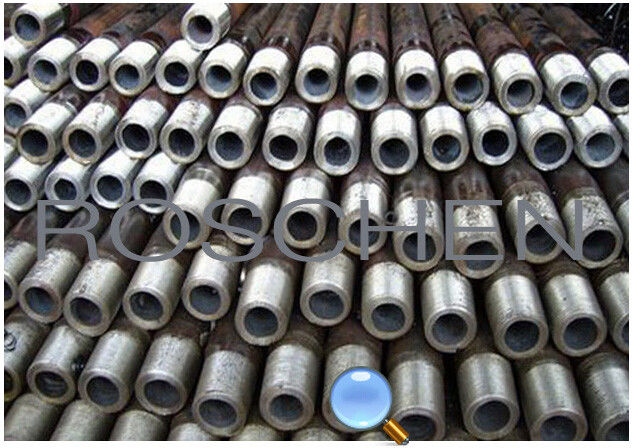

Water Well Drill Pipe Φ 89 x 10 x 6.5mm 3 Meters 40Cr Pipe Grade Drill Tubes
Water well drill pipe
Water well drill pipe Φ 89 x 10 x 6.5mm 3 meters 40Cr pipe grade drill rods
Water well drill pipe product specifications:
SPEC: Φ73x9x(9.5/6.1)mm Pipe body material: DZ40,DZ50,R780,G105
SPEC: Φ89x10x(9.5/6.1)mm Tool joint material: 40Cr,45Mn2,35Crmo,4137H
Specifications:
| OD of pipe body(mm) | Φ50 | Φ60 | Φ73 | Φ89 | Φ102 | Φ114 | Φ127 |
| OD of joint(mm) | Φ65 | Φ75 | Φ105 | Φ127 | Φ133.4 | Φ158.8 | Φ168 |
| Wall thickness of pipe(mm) | 6.5 | 7.1 | 9.19 | 9.5/10 | 8.38 | 8.56 | 9.19 |
| Length of drill rod(mm) | 1000～4500 | 1000～4500 | 1500～9500 | 1500～9500 | 3000～9500 | 1500～9500 | 5000-9500 |
Water well drill pipe applications:
Using to projects of mine blasting, water well drilling, geothermal well drilling, pipe-shed support drilling, coal mining and non-ferrous mental mining and so on.
