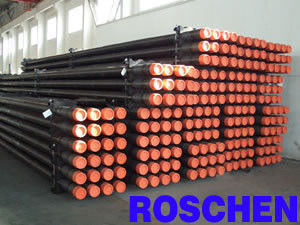

Wireline core drilling DCDMA standard Drill Rod BQ NQ HQ PQ for mining industry
Tapered threads DCDMA Drill Extension Rod BQ NQ HQ PQ for mining industry
Specifications:
1. High Quality Alloy Tube
2. Through Wall heat treated tube body
3. Consistent concentricity, straightness
4. DCDMA Standard thread
Raw Materials:
ROSCHEN choose the best steel tubes in the market to manufacture our drill rods and pipes. Spot check will be conducted after the steel tubes delivered to company. We will make sure the compositions and specifications match the inspection report form the suppliers.
Based on the depth of drill bore, Q series wireline core drill rods are classified into A and B grades. A grade drill rod is entire-length or ends thermal processed and B grade drill rod is entire-length processed.
Material: 30CrMnSiA or 45MnMoB (A grade), XJY850, BG850(B grade), RS950, Eruopean/US Standard 40/41
| Wireline Drill Rods Materials Standards(DCDMA standard) | |||
| Grade | Performance | Material | Heat Treatment |
| A | Standard | 30 CrMnSiA, 45MnMoB, 40/41 | Entire-length, ends thermal processed, Thread Nickel Coating |
| B | Premium | XJY850, BG850, RS950 | Entire-length |
Heat treatment control:
Heat treatment will greatly improve the material strength and increase the thread wear life of the rods and casings. We conduct either tru-wall or both ends heat treatment to the tube body. After heat treatment, strength, hardness, straightness and concentricity of the treated tubes will be tested in our lab.
Thread opening process:
Accuracy of threads will determine the use effects and life time of drill rod and casings.
CNC latches and form cutter are used in thread opening processing to minimize error made by anthropic factors.
Additional thread treatment:
Surface of the threads will be cleaned to remove burr adhered after threads are opened.
Afterwards, the tread surface will be phosphated to improve surface conditions.
Wireline core drill rod technical parameters:
DCDMA Drill Rods Tapered threads Wireline Drill Rod BQ NQ HQ PQ for mining industry
| Standard | Specification | Body Size | Length(M) | Thickness of The End | Bit Standard |
| B | BQA BQB | Ø55.6*4.8 | 3 | / | BQ |
| BRQ | Ø55.6*4.8 | 3 | / | BQ | |
| BQT | Ø56.5*4.75/6 | 3 | Internal Thicken | BQ | |
| BQS | Ø54*4.5/6.25 | 3 | Inside & Outside Thicken | BQS | |
| N | NQA NQB | Ø71*5.5(Ø70.1*5.05) | 3 | / | NQ |
| NRQ | Ø71*5.5(Ø70.1*5.05) | 3 | / | NQ | |
| NQT | Ø72*4.8/6 | 3 | Internal Thicken | NQ+1 | |
| NQS | Ø73*5/7.5 | 3 | Internal Thicken | NQ+1.5 | |
| H | HQR HQB | Ø89*5.6 | 3 | / | HQ |
| HRQ | Ø89*5.6 | 3 | / | HQ | |
| HQT | Ø91*5.8/6.75 | 3 | Internal Thicken | HQ+1 | |
| HQS | Ø91*5.8/7.5 | 3 | Inside & Outside Thicken | HQ+1 | |
| P | PQA PQB | Ø114.3*6.35 | 3 | / | PQ |
| PRQ | Ø114.3*6.35 | 3 | / | PQ |
ROSCHEN can supply the following products:
1) Drill rod: BQ, NQ, HQ, PQ
Casing tube: BW, NW, HW, PW, HWT, PWT
2) Bit: impregnated diamond bits, tri-tube core barrel, PDC diamond bit
3) Reaming shell: BQ NQ HQ PQ series
4) Core barrel: BQ, NQ, HQ, PQ head assembly and parts and overshot assembly
5) Drill tool: lifting tool, wrench, adapter sub, hoisting plug, water swivel, overshot, outer tube & inner tube wrench, foot clamp, recovery tap, etc.
