SD10A SD10 Down The Hole Hammer , Hydrology and water well drilling down hole hammer

1~5pcs
MOQ
Negotiate
giá bán
SD10A SD10 Down The Hole Hammer , Hydrology and water well drilling down hole hammer
Đặc trưng Bộ sưu tập Mô tả sản phẩm Yêu cầu báo giá
Đặc trưng
Thông số kỹ thuật
Model: Down The Hole Hammer
Name: Secoroc COP Hammer
Drill: Down The Hole Hammer Drilling, DTH Drilling
Machine: Hydraulic Crawler Drill Rig
Drilling: Water Well Drilling
Functions: Hydrology and water well drilling
Tools: Down The Hole Drilling Tools
Equipment: Surface Ground Core Drill Rig
Use: Core drilling, Mine rock drilling
Usage: Geological hazard prevention engineering
Điểm nổi bật:

dth drilling tools

,

down hole tools

Thông tin cơ bản
Nguồn gốc: Germany, China
Hàng hiệu: ROSCHEN
Chứng nhận: ISO,CE
Số mô hình: ROS100
Thanh toán
chi tiết đóng gói: Poly wooden box
Mô tả sản phẩm

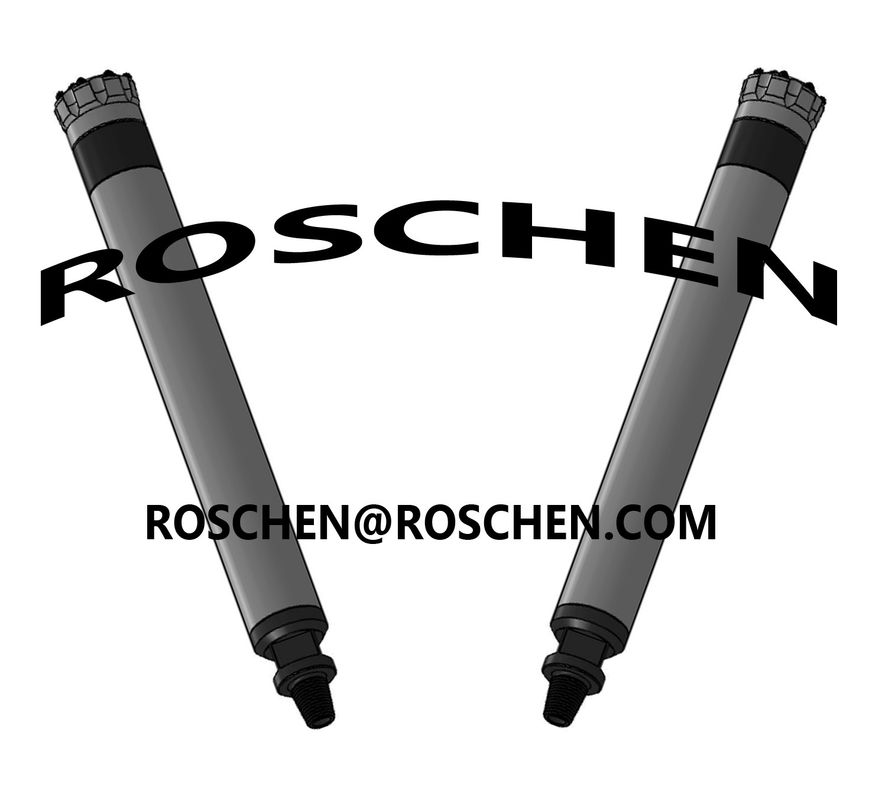

SD10A DTH Hammer SD10 Down The Hole Hammer For Hydrology and water well drilling




Pneumatic impactor


Pneumatic impactor, also known as pneumatic impactor, pneumatic dive hammer. To the compressed air as the power medium, the use of compressed air energy to produce continuous impact load hole at the end of power equipment.


Subject: Drilling Engineering



Glossary: Pneumatic Impactor, Down The Hole Hammer



Pneumatic percussion hammer, pneumatic down-tme-hole hammer



Compressed air at the same time can also doubles as a wash hole medium. Pneumatic impactor has high wind pressure and low wind pressure, valve type and no valve type of points. Usually the pneumatic impactor directly connected with the carbide rod tooth drill to impact the way rock, low-speed rotation is not coring the full drilling. Mainly used in hydrological wells drilling, no core geological drilling, geological disaster prevention and control projects and mine drilling and other fields. Suitable for use in gravel and hard rock formations, specially configured drill bits can also be used in soft soil. Mechanical drilling speed is generally much higher than the hydraulic impactor drilling, but need to be equipped with a larger capacity of the air compressor, fuel consumption, noise, dust pollution. Drilling depth by the groundwater level, the greater the impact of water.





SD10A DTH Hammer (SD10)


Basic Info
Model NO.: SD10
Mining Object: Mining
Origin: Germany,China
Type: Drilling Machine
Trademark: ROSCHEN
HS Code: 84123100






Description:




It is a kind of high air pressure DTH Hammer without footvalve, our newest design. It is also one of the most advanced DTH Hammers in the world.




It has the following advantages:



1. Out of the trouble of foot valve fracture and expansion and contraction.


2. Lower energy consumption and higher impact frequency. The drilling speed is 15%-30% higher than the one with foot valve.


3. Simple structure, reliable parts, long life, easy and cheap maintenance.


4. Lower air and oil consumption. The oil consumption is about 10% lower than the one with foot valve.



Technical Parameters of SD10 DTH Hammer:

Length (exclude bit) Weight (exclude bit) External Diameter Bit Shank Hole Range Connection Thread
1525 mm 316.00 kg Φ226 mm SD10 Φ254mm ~ Φ311mm API 6 5/8'' Reg
Working Pressure Impact rate at 0.5 MPa Recommended Rotary Speed Air Consumption
1.0 MPa 1.8 MPa 2.4 MPa
1.0 ~ 2.5 MPa 20 Hz 15 ~ 25 rpm 22 m³/min 40 m³/min 65 m³/min







DTH hammers
Hammer Size Bit Shank ROSCHEN Code Connection Thread Suitable bit Working pressure Air consumption
2" BR2 ROS 11  ROS 22 RD50 box ¢70-¢90mm 0.7-1.75Mpa 0.7Mpa 4.5m3/min
1.0Mpa 4m3/min
1.4Mpa 5m3/min
3" DHD3.5 ROS 32 API 2 3/8" Reg ¢90-¢110mm 1.0-1.5Mpa 1.0Mpa 4.5m3/min
COP32/COP34
M30 1.5Mpa 9m3/min
4" DHD340 ROS 34 API 2 3/8" Reg ¢110-¢135mm 1.0-2.5Mpa 1.0Mpa 6m3/min
COP44
QL40
SD4 1.8Mpa 10m3/min
M40 2.4Mpa 15m3/min
5" DHD350 ROS 52  ROS 54 API 2 3/8"Reg/API 3 1/2" Reg ¢135-¢155mm 1.0-2.5Mpa 1.0Mpa 9m3/min
COP54
QL50
SD5 1.8Mpa 15m3/min
M50 2.4Mpa 23m3/min
6" DHD360 ROS 62  ROS 64 API 3 1/2" Reg ¢155-¢190mm 1.0-2.5Mpa 1.0Mpa 10m3/min
COP64
QL60
SD6 1.8Mpa 20m3/min
M60 2.4Mpa 28.5m3/min
8" DHD380 ROS 82  ROS 84 API 4 1/2" Reg ¢195-¢254mm 1.0-2.5Mpa 1.0Mpa 15m3/min
COP84
QL80 1.8Mpa 26m3/min
SD8 2.4Mpa 34m3/min
10" SD10 ROS 100 API 6 5/8" Reg ¢254-¢311mm 1.0-2.5Mpa 1.0Mpa 22m3/min
Numa100 1.8Mpa 40m3/min
ROS 100 2.4Mpa 55m3/min
12" DHD1120 ROS 120 API 6 5/8" Reg ¢305-¢445mm 1.0-2.5Mpa 1.0Mpa 30m3/min
SD12 1.8Mpa 56m3/min
Numa120 2.4Mpa 78m3/min
Notes: Metzke, Remet thread is available!
