Geotechnical Drilling Equipment Drilling Rig
Geotechnical Drilling Equipment Drilling Rig for Drilling Water Well, Construction Site, Dam Drilling

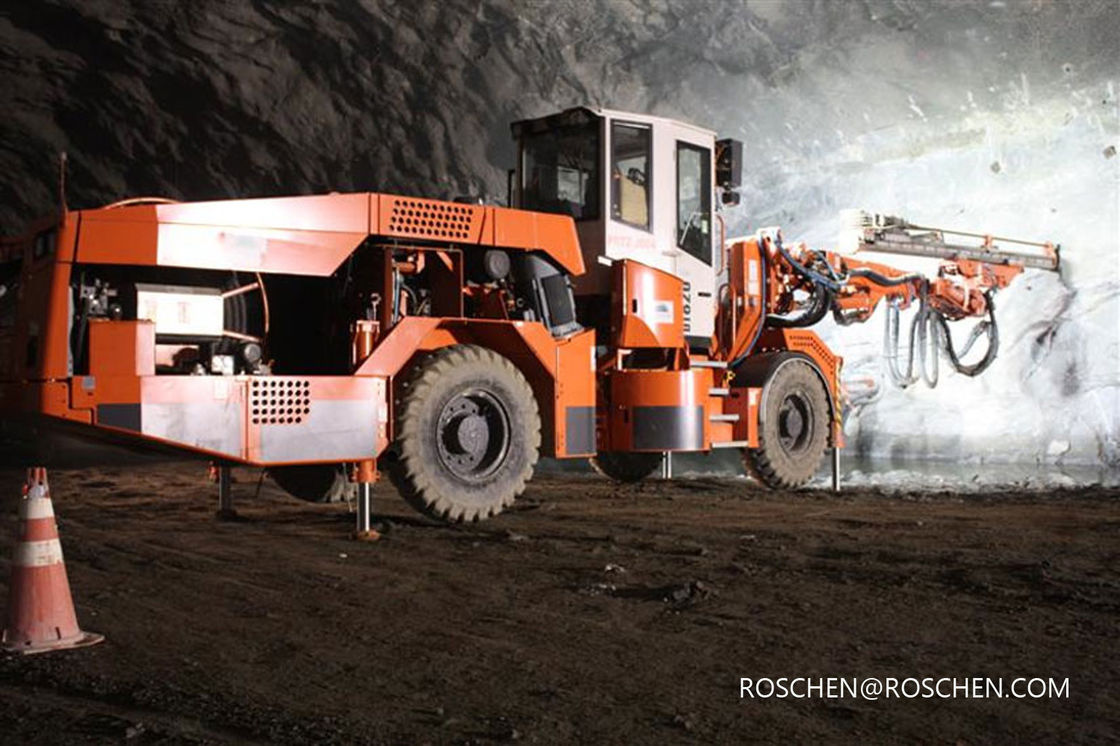

Geotechnical Drilling Equipment Atlas Copco DD210L Underground Drill Rig Used for Underground Drilling
Atlas Copco DD210L is a low profile single boom electro hydraulic drilling machine designed to work in excavations with headroom as low as 1.7 m.
The robust universal boom has a large optimum shaped coverage, 360° rotation and full automatic parallelism for fast and easy face drilling. The boom can also be used for crosscutting, the hose layout is specifically designed to maximize protection in low headings. The exceptional «V» shape layout is designed for good visibility and balance, this and the powerful four-wheeldrive articulated carrier ensure fast and safe maneuvering even in low headroom conditions.
The high performance drilling system allows high drilling performance with good drill steel economy and high machine reliability.
The operator environment and added automatic functions allow the operator to concentrate on safe, fast and accurate drilling.
All the service points are well protected but easy to access.
Technical Parameters Specifications:
| Technical Parameters | |
| Description | Technical Data |
| Hole diameter (mm) | Ø150 - 450mm |
| Hole Depth (M) | 0-200 |
| Rod diameter (mm) | Ø73, Ø89, Ø102, Ø114 |
| Hole Angle (˚) | 0 - 100 |
| Maximum lifting height level(m) | 3.5 |
| Maximum track height (m) | 0.7 |
| Output Rotary speed of power head(r/min) | 10/20/30/35/40/60/65/70/85/130/170 |
| Output Torque of power head(N.M) | 7500 |
| Stroke of power head(mm) | 3400 |
| Stroke of Slide Frame(mm) | 1500 |
| Lifting force of power head(kN) | 70 |
| Lifting speed of power head(m/min) | 0 ~ 5 adjustable /7/23/30 |
| Feeding force of power head(kN) | 36 |
| Feeding Speed of power head(m/min) | 0 ~ 10 adjustable/14/46/59 |
| Input power (electromotor)(kW) | 55+18.5+2.2 |
| Dimension (LxWxH)(mm) | 5400x2100x2000 |
| Weight (kg) | 6500 |
Roschen Mining reserves the right to make changes to the information on this data sheet without prior notification to users. Please contact a Roschen representative for clarification on specifications and options.
