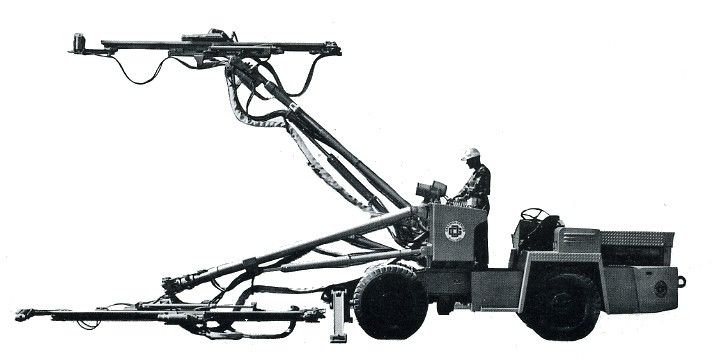

Gardner-Denver Universal Jumbo Twin Boom Drill

Gardner-Denver Universal Jumbo Twin Boom Drill Rig for drilling parallel holes

Gardner-Denver Universal Jumbo Twin Boom Drill Rig for drilling parallel holes





Versatility


The Gardner-Denver Jumbo is a multi-purpose machine, and is not restricted to only one function, such as drilling parallel holes. The Universal, as the name implies, drills burn cuts, V-cuts, cross cuts, stopes, rock-bolt holes, etc.


Ruggedness

The heavy-duty undercarriage features a one piece rigid structural frame, heavy-duty planetary axles, low pressure wide tires.



Maneuverability


A highly efficient power steering combined with short wheel base, reduces the turn radius to a minimum. Automotive type steering that allows the Jumbo to tram close to the wall, without fear of "locking side" as in case of articulated steering. The compactness, low profile and operator side seating feature permits the machine to negotiate headings as small as 10' (3.05 m) wide x 9' (2.7 m) high.

Highly mobile, highly flexible, the Universal Jumbo uses the building block design to give you the combination of components and options you want. And as the conditions and assignments change so can the Jumbo.

This basic drill carriage can be put to a number of mining tasks by assembling various combinations of engineered "building block" components.



WEIGHTS ● SPECIFICATIONS ● DIMENSIONS

Gardner Denver Universal Jumbo Twin Boom Drilling Rig Machine for drilling parallel holes 0

Gardner Denver Universal Jumbo Twin Boom Drilling Rig Machine for drilling parallel holes 1




Standard Universal Jumbo Components List:


1. Heavy Duty Undercarriage
2. Control Console and Counterweights
3. Hydraulic Outriggers
4. Model JHPU Hydraulic Pump
5. Model 1028560 Remote Drill Controls
6. Model 154200 10 Gallon Rock Oil Lubricator Reservoir
7. Drilling Equipment




Two Model JTI Rota-Booms:


1. Two Model DPT Positioners, 5' feed extension
2. Two Model 2MSM120R Feeds
3. Two Model PR55 Drills




Design Features and Specifications:


1. 4-Wheel drive.
2. Power steering.
3. Power brakes.
4. Deutz Model F620912 W Air Cooled Diesel Engine.
5. 4-speed forward/reverse transmission with optional speed ranges.
6. Drilling floodlights in vibration resistant fixtures.
7. Carrier tramming lights.
8. Operator's console with valves grouped for convenient operation.
9. Swing-out type hydraulic valve mountings for access to fittings.
10.Side seating.
11. Choice of water batch or oxy-catalyst, U.S.B.M. approved.
12. Rotary air valves for precise regulation and throttling of feed and drill.
13. Pressure regulated feed valves for varying ground conditions.
14. Air and hydraulic pressure gauges with protective covers.
15. 15:00 x 22.5 HRL Tires
16. 10-gallon (37.8 lit.) capacity lubricating oil tank, with individual regulation of oil flow to drills, feeds and air motors
17. Hydraulic Outriggers
18. Hydraulic power always available from diesel engine or external air supply.
19. Maximum speed 4.2 M.P.H. (7.4 km/hr.).
20. Gradeability - 35%.
21. Approximate operating weight - 32,000 lbs. (14,500 kg.).

Gardner Denver Universal Jumbo Twin Boom Drilling Rig Machine for drilling parallel holes 2



JT144/DPT


Boom and Positioner Combination

Gardner Denver Universal Jumbo Twin Boom Drilling Rig Machine for drilling parallel holes 3
Technical Parameters:

1. JTI-DPT Boom and Positioner Combination is a roll-over-type Boom for full face coverage
2. 360º rollover capability; full-circle coverage pattern; eliminates blind spots
3. Rotation in both directions allows the hose harness to be kept clear from damage or twisting
4. Rollover reaches the lower toe holes at the bottom of the tunnel face
5. Completely enclosed rotation mechanism prevents debris from jamming the Boom
6. A wide RANGE of drilling components, feeds, and drills can be mounted on the Boom; choice of right or left hand mounting; vertical or horizontal bracket
7. Hydraulically operated, easily controlled; for swift and POSITIVE positioning all cylinders include checkvalves to LOCK the boom in set position in the event of power loss or hydraulic fluid leakage
8. Drill positioner can be REMOVED from the the boom; replacement by stock units reduces costly downtime and assists maintenance programs
9. Rigid construction; provides a RIGID mounting for feed and drill components; PRECISE drilling; reduces wear; mounts longer feeds and larger drills
10. Simple maintenance; all swivel joints are easily lubricated or REPLACEABLE; insure maximum SERVICE life of major components
11. Multiple Booms; several units can be combined on a single jumbo rig to provide a MAXIMUM coverage pattern.


The JTI 144 Boom and DPT Positioner used as a combination unit result inthese maximum overall equipment capacities.




Boom Pivot Point in the front view of the mounting bracket is shown as seenfrom the drilling face looking at the base of the Boom.


JTI-DPT Coverage pattern as seen from the base of the Boom looking at thedrilling face. This coverage pattern shows maximum parallel-hole drilling withan aluminum shell screw feed and a standard drifter drill. (Each square = 1foot or 305 mm)



TABLE OF WEIGHTS
JTI Boom & DPT Positioner without a Feed Extension JTI Boom & DPT Positioner with a 2 ft. (.61 m) Feed Extension JTI Boom & DPT Positioner with a 3 ft. (.91 m) Feed Extension JTI Boom & DPT Positioner with a 5 ft. (1.5 m) Feed Extension

2207 lbs 2185 lbs 2283 lbs 2305 lbs

1001 kg 991 kg 1036 kg 1046 kg





2MSB SERIES






Screw Feeds


for Underground Jumbos



Drilling Features:


Rugged Construction
      Strong, extra-high web, wide-way Guide Shell and 1-1/2 H.P. In-Line Motor provide dependable service...High strength, light weight aluminum shell.

Remote Controls or Integral Control Valve Option
      The radial piston Feed Motor provides a very accurately controlled feed pressure. Choose the remote control style or the integral control Valve and Handle right on the Motor. Fast Drill return speed in reverse control.

Exact Drill Travel Lengths
      Full range of Shell-and-Screw lengths to provide the exact Drill travel needed for every drilling operation.
Low Maintenance
      Provided by Gardner-Denver quality design in all Bearings, Seals, Bumpers, and Fasteners plus built-in gear lubrication oil chamber.



Wide Range of Gardner-Denver Modular Drilling Equipment:


1. Aluminum Shell Screw Feed and Motor
2. Power Centralizers
3. Wide range of Drill models
4. Sectional Drill Rod equipment in many sizes
5. Integral one-pass Drill Rods
6. Versatile Remote Control Valve units
7. Automated push-button drilling cycle Controls
8. All types of Positioners, Booms, and mounting systems

Technical Parameters:

2MSB Series MODEL NO. 2MSB144 L T Weight of Mounting Boxed Shipping Dimensions Boxed Shipping Weight

Overall Length of Mounting Only Typical Travel Length
U.S. Inches Metric mm U.S. Inches Metric mm U.S. Lbs. Metric kg U.S. Inches Metric mm U.S. Lbs. Metric kg
183 4648 145 3683 328 148.8 14x17x193 356x432x4902 485 220





Surface Drill:






1. Plastic Water Tube
2. Nonstellited Ways
3. Closed Chuck End



Features:


1. Rotation Air Motor with 10-1 gear reduction, Stall Torque 250 ft. lbs.
2. Friction Free Bearings
3. Reversible bronze Chuck
4. Positive Pressurized Chuck End
5. Replaceable Ways
6. Integral Muffle
7. Side Exhaust or alternate
Top-Bottom Exhaust, 111 dBa at 1 meter at 90 psi (621 kPa)
8.Double supported reversible Hammer



Specifications:


1. Bore
    5.5" Diam.
    139 mm
2. Hole Size Range
    1-1/2" - 3-1/2" Diam.
   38 mm - 89 mm Diam.
3. Weight
    320 lbs.
    145 kg
4. Hoses
    Hammer Air - 1-1/2" I.D., 38 mm
    Rotation Air - 1" I.D., 25 mm
    Blow Air or Water 3/4" I.D., 19 mm
5. Drill Rod
     1. 1-1/4" Hex - 32 mm
     2. 1-1/4" Rd., 32 mm
     3. 1" Q.O., 25 mm
     4. 1" Hex, 25 mm
