Two Arm Drilling Jumbo Drilling Rig Machine For HZS Series Concrete Mixing Plant

1 Set
MOQ
Negotiate
giá bán
Two Arm Drilling Jumbo Drilling Rig Machine For HZS Series Concrete Mixing Plant
Đặc trưng Bộ sưu tập Mô tả sản phẩm Yêu cầu báo giá
Đặc trưng
Thông số kỹ thuật
Name: Drilling Jumbo
Model: HZS Series Concrete Mixing Plant
Type: Tunneling and Lining Drilling
Materials: Forging, Heat Treatment
Use: explosive filling
Usage: Tunnel Drilling
Model No.: Two Arm Drilling Jumbo
Điểm nổi bật:

rock drilling equipment

,

geothermal drilling rigs

Thông tin cơ bản
Nguồn gốc: CHINA
Hàng hiệu: ROSCHEN
Chứng nhận: ISO
Số mô hình: RS-110
Thanh toán
chi tiết đóng gói: Bundles
Khả năng cung cấp: 1000 sets
Mô tả sản phẩm

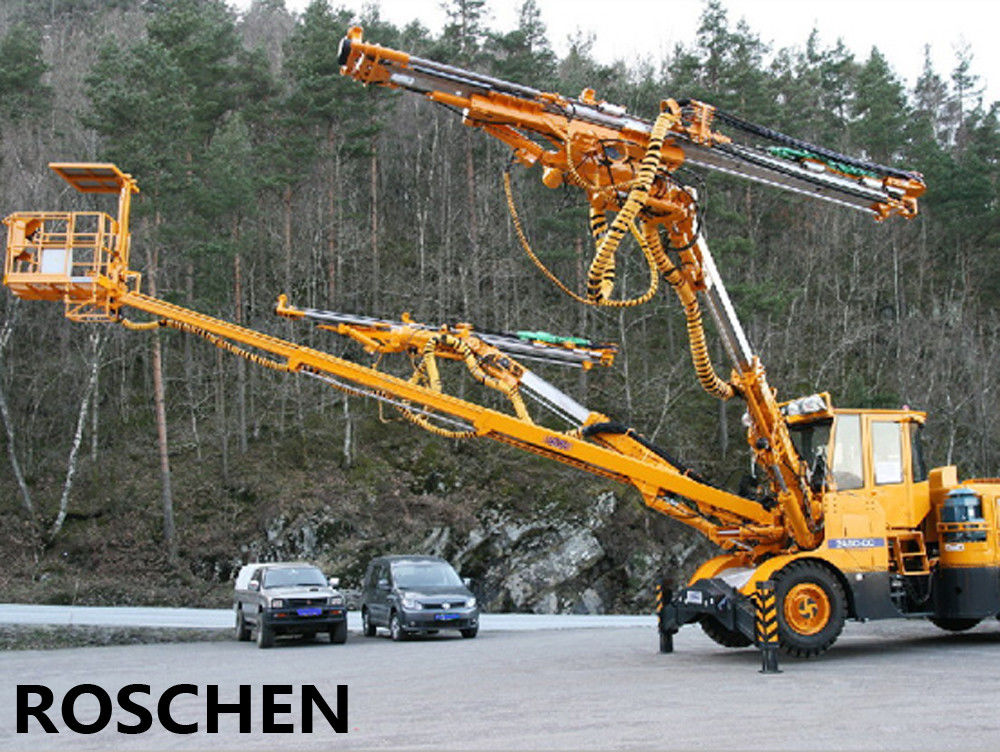

Two Arm Drilling Jumbo HZS Series Concrete Mixing Plant Used in Various Tunneling and Lining



Model: RS-110  Two-arm drilling jumbo


Two-arm drilling jumbo



HZS Series Concrete Mixing Plant




Features:

It can be divided into two types: computer-controlled and hydraulic-controlled, it has the function of walking, drilling and explosive filling. It has the advantages of convenience, simple operation, fast drilling, full function, high safety and low cost, with the combination of our shotcrete, it can be widely used in various tunneling & lining works of national defense, metallurgy, railway and highway.



Technical Parameters:

Item Unit Parameters
ZYS82/ZY82
Drilling machine Qty. set 2
Max. impulsive power kW 32
Air compressed machine Rated power kW 9
Drilling arm
Max. height mm 8000
Max. width mm 13200
Thruster
Total length mm 6125
Max. drilling depth mm 4000
Operation platform
Working load kg 500
Chassis
Generator Power kW 103
Max. speed Km/h 15
Complete machine dimension mm 14800x2700x3250
