Pilot Adaptor R32 Reaming Bit 65mm For Quarrying Drilling Coal Mining

1-5 pcs
MOQ
Pilot Adaptor R32 Reaming Bit 65mm For Quarrying Drilling Coal Mining
Đặc trưng Bộ sưu tập Mô tả sản phẩm Yêu cầu báo giá
Đặc trưng
Thông số kỹ thuật
Type: Drill Bit
Machine Type: Drilling Tool
Use: Ore Mining
Application: Quarry,Blasting hole, water well drilling
Condition: New products
Color: Golden, Yellow or various
Processing: Forging
Điểm nổi bật:

dth drilling tools

,

diamond core drilling bits

Thông tin cơ bản
Hàng hiệu: ROSCHEN
Chứng nhận: ISO
Số mô hình: R32
Thanh toán
chi tiết đóng gói: Poly wooden case + Carton Box
Khả năng cung cấp: 1,0000 pcs
Mô tả sản phẩm

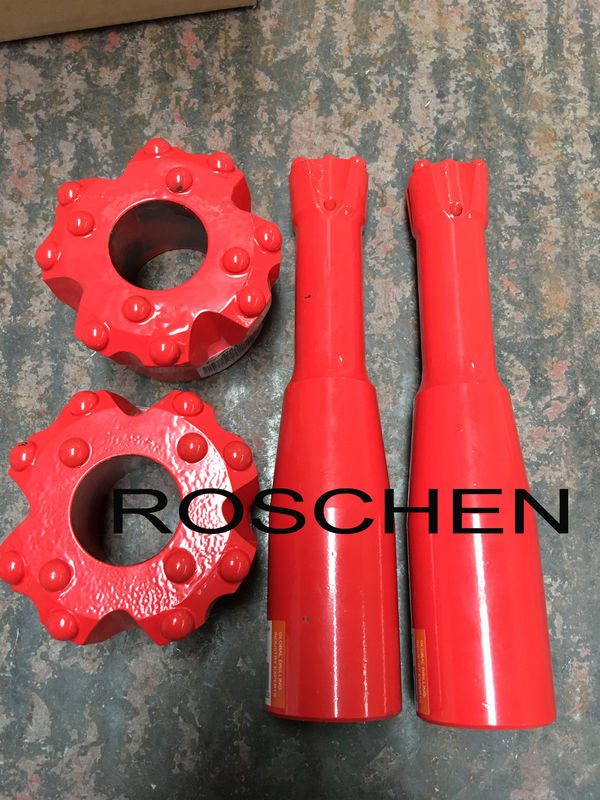

Pilot Adaptor R32 Reaming Bit 65mm For Quarrying Top Hammer Drilling





Brand Name: ROSCHEN
Type: Drill Bit, Reaming Bits and Pilot Adaptors
Machine Type: Drilling Tool
Material: Carbide
Processing Type: Forging
Use: Coal Mining
Bits Diamter: 64-152mm
Drill bits Model: Button Bit, Chisel Bit
Usage: Hard rock drilling
Tapered degree: 6 / 11 / 12 degree
Thread: R28/R32/T38/T45/T51




Applications:


This type of bit is used for making large cut holes in drifting and tunneling. A smaller hole is first drilled and then reamed to the final size in combination with a pilot adapter. Large diameter service holes from level to level for drainage, electrical cable or pipe lines routinely used to ream cut holes for development rounds and for long hole blasting of drop raise.



Description:

Reaming bits were widely used in quarrying or mining for blast hole drilling, with pilot adaptors, the drilling direction can be ensured and accurate. Pilot holes are drilled depth and then reamed out to a larger diameter in a second pass required when hole diameter exceeds the capabilities of the rock drill and drilling tools available.


Specifications:


PIC. Model Dia. Gauge Button Front Button Taper Part No.
A 6° Taper reaming button bits (shperic or parabolic buttons) 64 8*Φ9mm 2*Φ10mm RS-64-809-210-6
64 8*Φ9mm 4*Φ8mm RS-64-809-408-6
65 8*Φ9mm 4*Φ8mm RS-65-809-408-6
76 8*Φ10mm 4*Φ10mm RS-76-810-410-6
76 8*Φ10mm 4*Φ9mm RS-76-810-409-6
76 8*Φ11mm 2*Φ11mm RS-76-811-211-6
76 7*Φ11mm 4*Φ11mm RS-76-711-411-6
76 8*Φ14mm 4*Φ13mm RS-76-814-413-6
89 8*Φ12mm 4*Φ12mm RS-89-812-412-6
89 8*Φ12mm 4*Φ11mm RS-89-812-411-6
89 8*Φ12mm 4*Φ10mm RS-89-812-410-6
89 8*Φ13mm 4*Φ10mm RS-89-813-410-6
89 8*Φ12mm 4*Φ11mm RS-89-812-411-6
102 8*Φ14mm 4*Φ12mm RS-102-814-412-6
12° Taper reaming button bits (shperic or parabolic buttons) 89 8*Φ12mm 4*Φ10mm 12° RS-89-812-410-12
102 8*Φ12mm 4*Φ12mm 12° RS-102-812-412-12
102 8*Φ14mm 4*Φ12mm 12° RS-102-814-412-12
127 10*Φ13mm 8*Φ13mm 12° RS-127-1013-813-12
127 10*Φ13mm 10*Φ13mm 12° RS-127-1013-1013-12
B 6° Taper chisel reaming bits 60 carbide:12*8mm (4pcs) RS-60-128-4-6
64 RS-64-128-4-6
65 RS-65-128-4-6
70 RS-70-128-4-6
76 carbide:12*10mm (4pcs) RS-76-1210-4-6
80 RS-80-1210-4-6
89 RS-89-1210-4-6
10° Taper chisel reaming bits 70 carbide:12*8mm (6pcs) 10° RS-70-128-6-10
75 RS-75-128-6-10
80 RS-80-128-6-10
90 RS-90-128-6-10
100 carbide:12*10mm (6pcs) RS-100-1210-6-10
120 RS-120-1210-6-10
C Pilot adaptors 6° chisel: Φ26/28*12*8mm L=240/300mm, thread: R25/28/32*12.7mm, 6°
Pilot adaptors 12° chisel: Φ35/40*15*10mm L=250mm, thread: R25/28/32*12.7mm, 12°
D Thread chisel reaming bits 60 carbide:12*8mm (4pcs) RF25 RS-60-128-4-25RF
70 RS-70-128-4-25RF
80 carbide:12*10mm (6pcs) RF32 RS-80-1210-6-32RF
90 RS-90-1210-6-32RF
100 RS-100-1210-6-32RF
120 RS-120-1210-6-32RF
130 RF38 RS-130-1210-6-38RF
150 RS-150-1210-6-38RF
E Integral reaming button bits 89 12*Φ11mm 2*Φ11mm+1*Φ10mm R32/R38*12.7 RS-89-1211-211-10
102 12*Φ12mm 2*Φ12mm+1*Φ10mm R32/R38*12.7 RS-102-1212-212-10
102 12*Φ14mm 2*Φ10mm+1*Φ10mm R32/R38*12.7 RS-102-1214-210-10
127 8*Φ14mm 8*Φ12mm+2*Φ12mm R38*12.7 RS-127-814-812-12
F Dome reaming bit (shperic or parabolic buttons) 76 9*Φ13mm 1*Φ13mm R32/T38/T45 RSD-76
89 14*Φ13mm 1*Φ13mm R32/T38/T45 RSD-89
102 16*Φ13mm 1*Φ13mm R32/T38/T45 RSD-102
127 18*Φ13mm 1*Φ13mm R32/T38/T45 RSD-127
152 18*Φ14mm 2*Φ14mm T45/T51/ST58/ST68 RSD-152-1
152 9*Φ16mm 6*Φ16mm ST58/ST68 RSD-152-2



Factory and Workshop:

Pilot Adaptor R32 Reaming Bit 65mm For Quarrying Drilling Coal Mining 0


Product Process

Materials: Tungsten carbide and high strength alloy steels.
Processing: CNC milling and proprietary "hot (thermal) -insertion" processing procedure to insert the buttons as same as internationally well-known brand, military grade requirements of heat-treatment guarantee durability.


Packaging & Shipping:

Packing details can be customized as per your requirement (plywood case, plastic box or carton...).
Timely shipment can be made upon our negotiation.

Pilot Adaptor R32 Reaming Bit 65mm For Quarrying Drilling Coal Mining 1
