R32 Button Bit, Ballistic Buttons for High Wear Resistance on medium-hard to hard abrasive rock formations
This type of bit is well known for its high wear resistance on medium-hard to hard abrasive rock formations (between 200 Mpa to 260 Mpa compressive strength). Featuring ballistic tungsten carbide inserts that is known to have high penetration rate, but has weak configuration against carbide fracture. Used in drifting and tunneling.
Features:
Bit Diameter (mm): 41
Bit Diameter (inch): 1 3/5
Front Buttons (No. x mm): 2x8
Gauge Buttons (No. x mm): 5x9
Angle: 40°
Front Flushing Holes: 1
Side Flushing Holes: 1
Weight (kg): 0.7
Product Description:

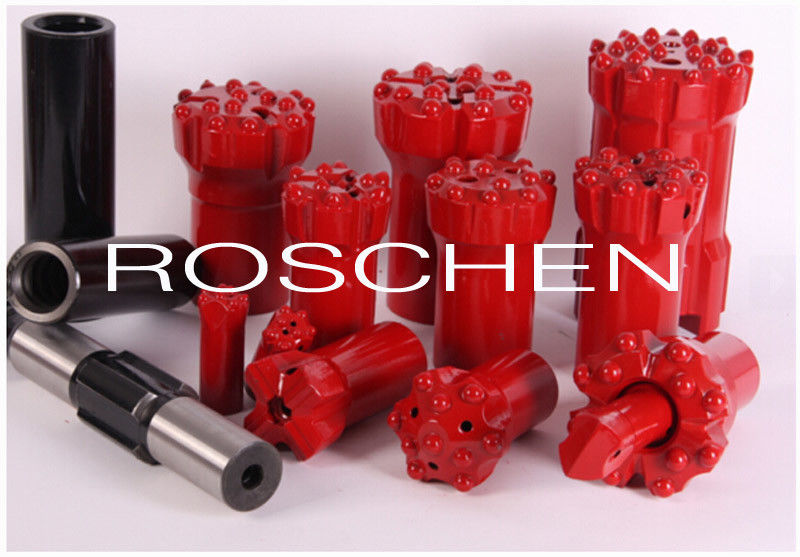

Roschen are one of the professional manufacturers & suppliers of rock drilling tools, button bits, DTH bits, DTH hammers, rock tools, coal mining tools, mining rock tools, quarrying tools, machine tools, DTH hammers & bits, retrac button bits, thread button bits, tapered button bits, chisel bits, cross bits, thread cross bits, tapered cross bits, shank adapter, shank adaptors, thread bits, taper bits, drill rod, drill bits, rock bits, mining bits, integral drill steel, tapered drill rods, thread drill rods, M-F (male-female) rods, extension rods, integral drill rods, pneumatic drill rods, self-drilling anchor, drifter rods, hollow drill steels, shoulder drive drilling, drifting and tunneling, bench and production drilling, furnace tapping tools, down the hole drilling, shield driving & TBM cutters, coal cutter pick-shaped bits.
Thread button bits could be with Rope thread R22, R25, R28, R32, R35, R38 and T thread, T38, T45, T51, T60, ST58, ST68 etc.
Main threaded button bits are:
R22-32mm, R22-36mm, R22-38mm, R22-41mm;
R25-33mm, R25-35mm, R25-37mm, R25-38mm, R25-41mm, R25-43mm, R25-45mm;
R28-37mm, R28-38mm, R28-41mm, R28-43mm, R28-45mm, R28-48mm;
R32-41mm, R32-43mm, R32-45mm, R32-48mm, R32-51mm, R32-54mm, R32-57mm, R32-64mm, R32-76mm;
T38-64mm, T38-70mm, T38-76mm, T38-89mm, T38-102mm, T38-127mm;
T45-76mm, T45-89mm, T45-102mm;
T51-89mm, T51-102mm, T51-115mm , T51-127mm;
T60-92mm, T60-96mm, T60-102mm, T60-115mm, T60-118mm, T60-127mm, T60-140mm, T60-152mm etc.
T51 button bits could be produced as per your requirements completely, such as flat face or drop-center face; normal body or retrac body; spherical buttons, ballistic buttons or parabolic buttons.
| Price Terms: | FOB Ex-works |
| Payment Terms: | T/T in advance |
| Packing: | Ply-wooden cases |
| Lead Time: | Within 15-35 days according to your order quantity |
| Other Names: | Rock Drill Tools,Top Hammer Rock Tools,Drilling Tools,Rock Drill Bits,Rock Drill Rod,Drilling Bits |
| Material: | Alloy Steel Bar 45CrNiMoV and Tungsten Carbide Tips YK05 |
| Bit Diameter: | 89mm, 102mm, 127mm |
| Button Shape: | Spherical, Hemispherical, Ballistic, Parabolic |
| Face Type: | Drop Center, Flat Face |
| Bit Body: | Standard, Retrac |
| Machine Type: | Rock Drilling Tools |
| Processing Type: | Forging |
| Technology: | Heat Treatment |
| Application: | Hard Rock Drilling, Mining, Quarrying, Stoning, Construction |
| Colour: | Gold, Black, Red, Blue, Yellow |
Further products information, please don't hesitate to contact us.
