Atlas Copco Shank Adapter 1032-T38 Model Dia. 45mm 550mm Long

1-50pcs
MOQ
Atlas Copco Shank Adapter 1032-T38 Model Dia. 45mm 550mm Long
Đặc trưng Bộ sưu tập Mô tả sản phẩm Yêu cầu báo giá
Đặc trưng
Thông số kỹ thuật
Điểm nổi bật:

dth drilling tools

,

diamond core drilling bits

Thông tin cơ bản
Nguồn gốc: Germany
Hàng hiệu: ROSCHEN
Chứng nhận: ISO, CE
Số mô hình: T38-45
Thanh toán
Khả năng cung cấp: 10000pcs
Mô tả sản phẩm

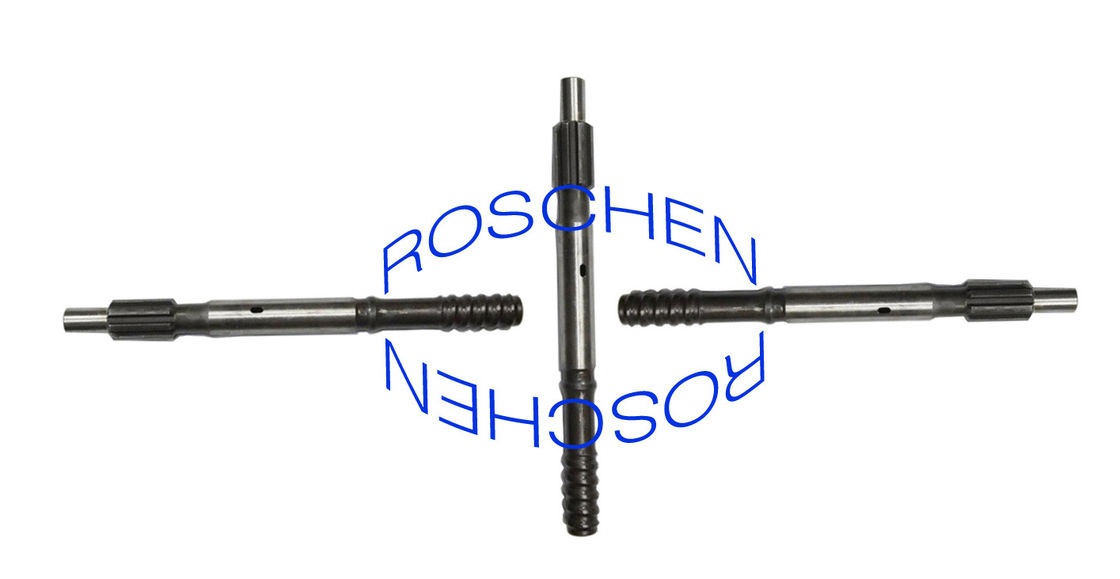

Atlas Copco Shank Adapter 1032-T38 Model Dia.45mm 550mm Long



Material: Tungsten Carbide Color: As Per Customer Requirements
Processing: CNC Milling And Proprietary Heat Treatment Process Type: Mincon Shank Adapters







In top hammer drilling, the shank adapter transmits impact energy from the piston to the rod(s) or tube(s). Additionally, rotation torque is delivered via the shank adapter.
Used in top hammer drilling systems

Applications
1. Underground mining
2. Tunneling
3. Quarry



Advantage:
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance

We are a professional manufacture of rock drilling tools, mining tools, DTH Drilling tools. construction tools and excavating coal pick cutter tools.

1. Integral drill steels(Integral Drill Rods)
   Shank H22 x 108mm, H19 x 108mm, standard hex, Bit diameters include 20-42mm.
2. Tapered drilling tools(Tapered Drill Steel)


Including:
Drill rods with Shank H22 x 108mm,(6,7,11,12 degree taper) taper rods in most lengths.

button bits, cross type bits and chisel bits with (6, 7, 11, 12 degree taper).

Bit diameter: 28mm-57mm.

3. Extension drilling tools

Button bit, face design: Flat face, drop centre, Normal and retrac body.

tungsten carbide(Buttons): Spherical, ballistic and Conical (Threaded R32, T38, T45,T51, bit diametre:45mm-127mm);

Couplings sleeves-manufactured with a middle stop to prevent walking along the thread. Include couplings sleeve (threaded R22, R25, R28, R32, R38, T38, T45, T51)

Shank adapters-carburized and manufactured with tight tolerances and controlled straightness.

4. Down the hole hammers and DTH button bits (Down The Hole Drilling).

Roschen hammers includes DHD3.5, DHD340, DHD350, DHD360, DHD380, and low pressure hammers CIR65, CIR90, CIR110, CIR150, CIR170, etc; DTH drill bits: 60mm-254mm bits with flat face, concave design fit for the atlas copco and ingersoll-rand model etc.

5. Excavate coal cutter bits

Include all kinds of round cutter bit and flat cutter bits for excavate coal machine as the replacements of kennametal. Such as U76,U82,U84,U85,U92,U94,U95,U118 And coal bolting bit and coal bolting rod.

6. All kinds of casing bits for shield machine and construction tools.

7. Round road planing bit for road milling machine and trenching machine. Shank dia: 19.4mm, 25mm, 30mm, 33mm, 38mm,etc.

8. Blast furnace tap hole drill tools (Rod, Cross type bits, button bits and X type bits etc).


ROSCHEN Shank adapters

Male shank adapters are ideal for drifting, tunneling & extension applications where high bending stresses are present, and female shank adapters are used when the drilling space is limited and the total feed length is important.

The shanks for hydraulic drills and some pneumatic drills have external or front head flushing. Hydraulic shanks generally have at least a 5 to 14 splines configuration, and pneumatic shanks tend to have internal or through-flushing and can generally be identified by their lugs or 4 splines configuration.


1) Thread: R32,R38,T38,T45,T51
2) Length: 300--800mm
3) Drill Rig Series:
Mincon, Atlas Copco, Furukawa, Ingersoll- Rand, Montabert, Tamrock, etc.
