High Strength Drill Rod Wear Resistance Long Life 4" Reverse Circulation

50
MOQ
$40/pc
giá bán
High Strength Drill Rod Wear Resistance Long Life 4" Reverse Circulation
Đặc trưng Bộ sưu tập Mô tả sản phẩm Yêu cầu báo giá
Đặc trưng
Thông số kỹ thuật
Điểm nổi bật:

shank adapter

,

drill extension rod

Thông tin cơ bản
Nguồn gốc: Germany
Hàng hiệu: ROSCHEN
Chứng nhận: ISO
Số mô hình: 3 1/2" 4" 4 1/2" 4" 4 1/2" 4" 4 1/2"
Thanh toán
chi tiết đóng gói: wooden box
Khả năng cung cấp: 60 pcs/day
Mô tả sản phẩm

High Strength Drill Rod Wear Resistance Long Life 4" Reverse Circulation

ROSCHEN offers a complete line of premium quality reverse circulation, drill rods, in sizes from
3 1/2" to 10 3/4", and with a number of thread connections. All Reverse Circulation rods are
manufactured using the most advanced technologies and specifically engineered to provide high
strength, excellent wear resistance, and long life.

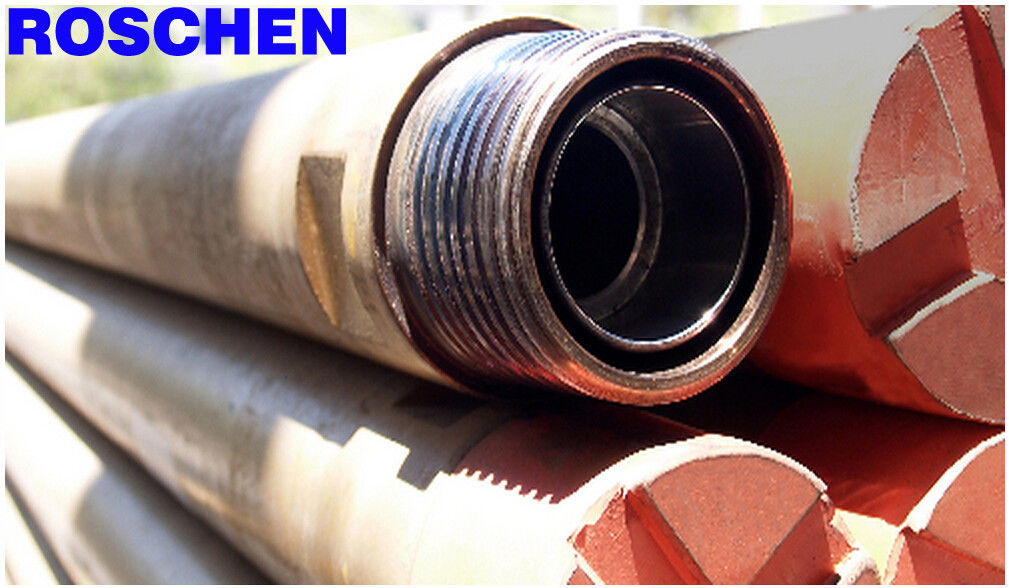

RC, dual wall drill rods are manufactured with an outer drill rod and an inner tube located inside the rod.
When the drill rods are threaded together, the inner tubes seal together to provide a continuous route for cuttings to travel from the bit face to the surface for collection.

Features:
1. Plain end mid-body
2. 4140 QT tool joints
3. 3.65" sq. inch weld area
4. Inertia welded - increased strength due to full face surface welds.
5. Heat treated - weld zone to further optimize the mechanical and physical properties of the rod.

Please contact your ROSCHEN representative for additional details, and ordering assistance.
Specifications:

REVERSE CIRCULATION DRILL ROD SPECIFICATIONS
 Thread Type Remet Remet Remet Metzke Metzke Matrix Matrix
 Rod O.D. 3 1/2" 4" 4 1/2" 4" 4 1/2" 4"4 1/2"
 Outer Tube O.D. 88.9mm101.7mm 114.3mm101.7mm 114.3mm 101.7mm 114.3mm
 Outer Tube I.D. 81.8mm94.6mm 107.2mm 94.6mm 107.2mm 94.6mm 107.2mm
 Outer Tube W.T. 5.3mm7.1mm 7.1mm 7.1mm 7.1mm 7.1mm 7.1mm
 Inner Tube O.D. 38.1mm50.8mm63.5mm 50.8mm 63.5mm 50.8mm 63.5mm
 Inner Tube I.D. 32.6mm45.3mm58mm45.3mm 58mm 45.3mm 58mm
 Inner Tube W.T. 5.5mm5.5mm5.5mm 5.5mm 5.5mm 5.5mm 5.5mm
 Spanner Flat 90mm 90mm90mm90mm 90mm 90mm 90mm
 Weight 3.0m 75kg. 75kg. 95kg. 75kg. 95kg. 75kg. 95kg.
 Weight 6.0m 120kg. 150kg. 168kg. 150kg. 168kg. 150kg. 168kg.
