Impregnated diamond core drilling Bit PQ , PQ3 series 8 , 14mm , 16mm for Rock hardness of F1-F14

1 pcs
MOQ
$100
giá bán
Impregnated diamond core drilling Bit PQ , PQ3 series 8 , 14mm , 16mm for Rock hardness of F1-F14
Đặc trưng Bộ sưu tập Mô tả sản phẩm Yêu cầu báo giá
Đặc trưng
Thông số kỹ thuật
Điểm nổi bật:

Diamond Core Drilling Bits

,

Concrete Core Drill Bit

Thông tin cơ bản
Nguồn gốc: Germany
Hàng hiệu: ROSCHEN
Chứng nhận: ISO9001, API
Số mô hình: T2 46, T2 56, T2 66, T2 76, T2 86, T2 101, AQ, BQ, NQ, HQ, PQ/AQTK, BQTK, BQ3, NQ2, NQ3, NQTT, HQ3, HQTT, PQ3, PQTT
Thanh toán
chi tiết đóng gói: wooden, carton box
Mô tả sản phẩm

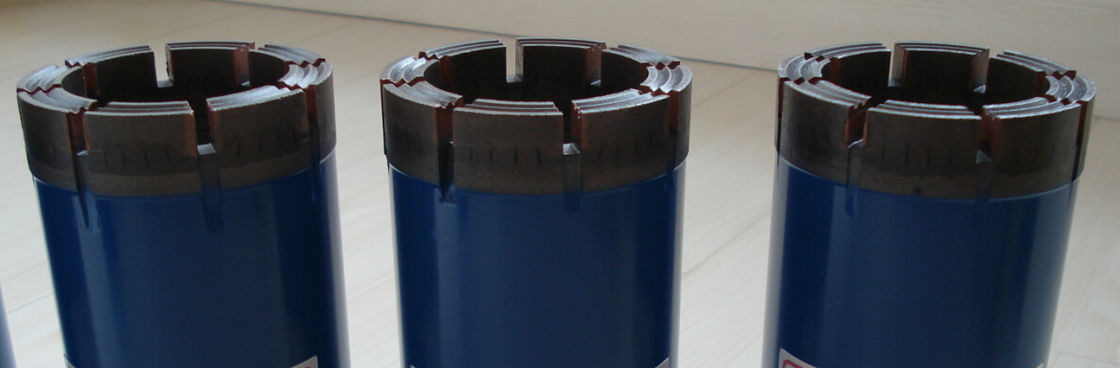

PQ PQ3 ​Impregnated diamond core drilling Bit



Impregnated diamond core drilling Bit PQ3 series 8 , 14mm 16mm for Rock hardness of F1-F14

Impregnated diamond core drilling Bit PQ , PQ3 series 8 , 14mm , 16mm for Rock hardness of F1-F14



Detailed Product Description

Features: High Penetration Rate, High Speed,High Performance Product Name: Core Drill Bits
Crown Height: 9mm, 12mm, And 16mm Type: Turbo Type Diamond Core Bit
Certificate: ISO9001 Use: Hard Rock





Impregnated diamond core drilling Bit PQ3 series 8 ,14mm for Rock hardness of F1-F14





Bits are attached to the foremost part of the Core barrels to be used in direct drilling of the ground, and play the most important role among the equipments that are used in drilling. There are many types of bits classified and used according to the purpose of drilling or ground conditions, and the bits are also different in their material, shape, and performance.





Specifications:


1.  available in all standard drilling sizes (A,B,N,P,H).
2.  various waterways design.
3.  long bit life and good performance.



To select the right bit for the job, assess the speed and power of your drill for the size and depths of the holes to be drilled and assess ground conditions such as rock type/formation and down-hole conditions.





Size:



Longlife  diamond core bits are available in all standard drilling sizes . Also, non-standard sized bits can be produced according to requirements from clients.



Crown Height:


We could offers crown impreg depths of  9mm, 12mm, and 16mm .The taller crown heights provide improved bit stability and reduced vibrations, enhancing bit life and performance.



Waterways:


Various waterways are available for diamond impregnated bits. Differing waterways allow for better flushing in various ground conditions and drilling systems.




Matrix Bond:


The impregnated bits matrices can be selected by our engineer according to ground conditions at client's work site.





Threads:



standard Q threads as well as thread types required by clients are available.





Series number

Rock formations

11

magnetit,metamorphschist,gneiss,granite,basalt,gabbro,rhyolite,diorite,conglomerate,taconite

10

magnetit,metamorphschist,gneiss,granite,basalt,gabbro,rhyolite,diorite,conglomerate,taconite

9/10

andesite,pegmatite,hematite,magnetit,metamorph schist,gneiss,granite,basalt,gabbro,rhyolite,diorite

9

andesite,pegmatite,hematite,magnetit,metamorph schist,gneiss,granite,basalt,gabbro,rhyolite,diorite

8

dolomite,marble,peridotite,andesite,pegmatite,hematite,magnetit,metamorph schist,gneiss,granite,basalt

7/8

dolomitic limestone,schist,serpentine,hard & mica schist,siliceous limestone,dolomite,marble,peridotite,andesite,pegmatite,hematite

7

dolomitic limestone,schist,serpentine,hard & mica schist,siliceous limestone,dolomite,marble,peridotite,andesite,pegmatite,hematite

6/7

med-hard limestone,hard limestone,hard shale,dolomitic limestone,schist,serpentine,hard & mica schist,siliceous limestone,dolomite,marble,peridotite

6

med-hard limestone,hard limestone,hard shale,dolomitic limestone,schist,serpentine,hard & mica schist,siliceous limestone,dolomite,marble,peridotite

5

claystone,sandy limestone,soft schist,med-hard sandstone,siltstone,alluvial deposits,calcitic limestone,med-hard limestone,hard limestone,hard shale,dolomitic limestone

4

claystone,sandy limestone,soft schist,med-hard sandstone,siltstone,alluvial deposits,calcitic limestone,med-hard limestone,hard limestone,hard shale,dolomitic limestone

3

soft shale,chalk,marly shale,med-hard limestone,salt,frozen soil&ice,soft sandstone,sandy shale,claystone,sandy limestone,soft schist,med-hard sandstone,siltstone,alluvial deposits,calcitic limestone

2

soft shale,chalk,marly shale,med-hard limestone,salt,frozen soil&ice,soft sandstone,sandy shale,claystone,sandy limestone,soft schist,med-hard sandstone,siltstone,alluvial deposits,calcitic limestone

1

sand,soft shale,chalk,marly shale,med-hard limestone,salt,frozen soil&ice,soft sandstone,sandy shale,claystone,sandy limestone,soft schist





Size Available as followings:



AQ, BQ, NQ, HQ, PQ/AQTK, BQTK, BQ3, NQ2, NQ3, NQTT, HQ3, HQTT, PQ3, PQTT

T2 series: T2 46, T2 56, T2 66, T2 76, T2 86, T2 101

T6 series: T6 76, T6 86, T6 101, T6 116, T6 131

T series: T36, T46, T56, T66, T76, T86

Non-standard also can be made as your demand
